Tonight I was planned disassemble my Tesla Coil and use spark gap for another
experiment with corona preionization. Before this was planned capture some
photos of working TC before removing spark gap and some capacitors.
But, during capturing photos, something go wrong and spark gap burn. (Argh!)

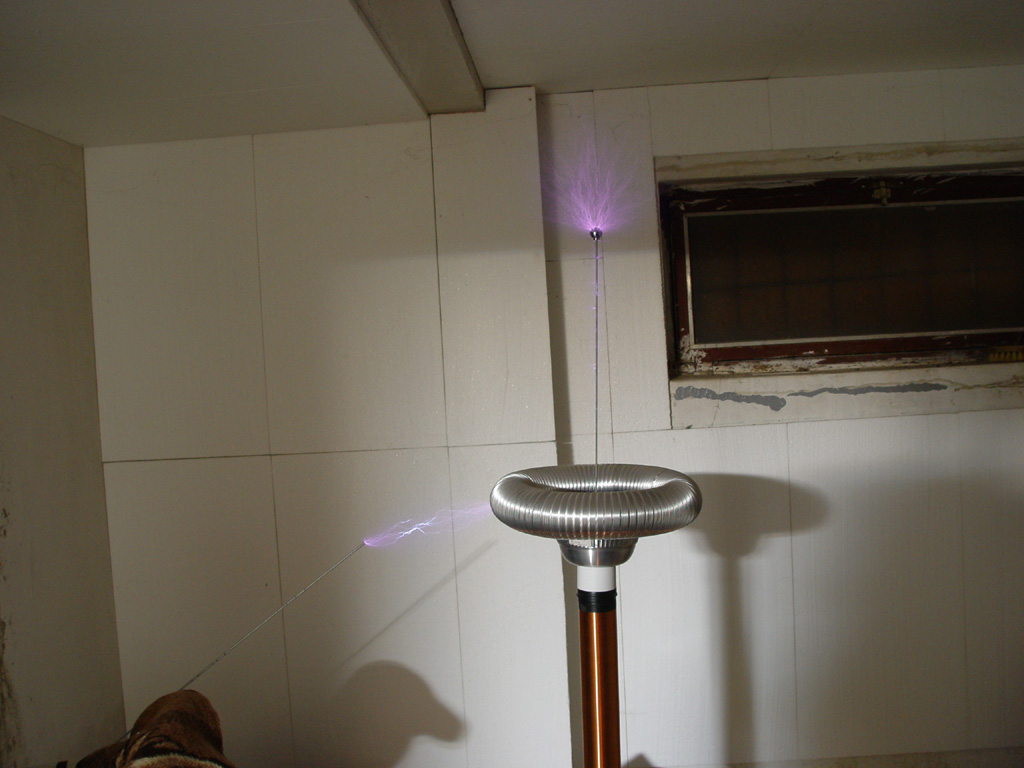

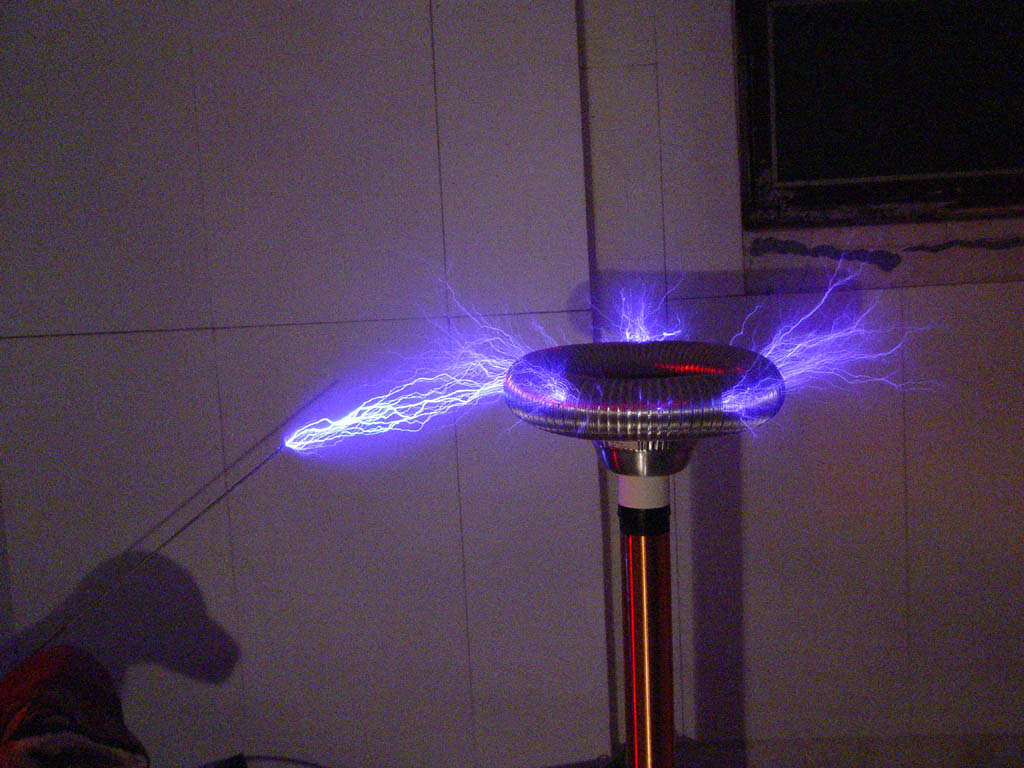

Firstly, I want to show to you few photos of sparks and arcs which are
beautiful by looking in dark room, and will not comment too much, because
now I feel little sad and upset because SG burn...
 |
 |
 |
 |
 |
 |

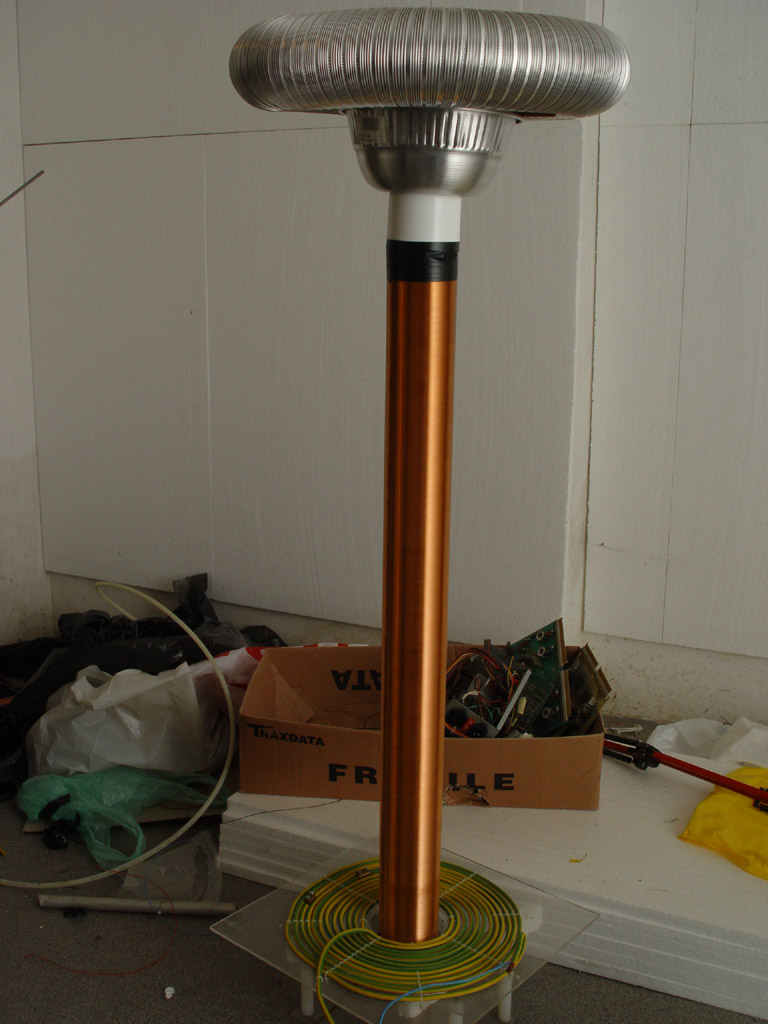

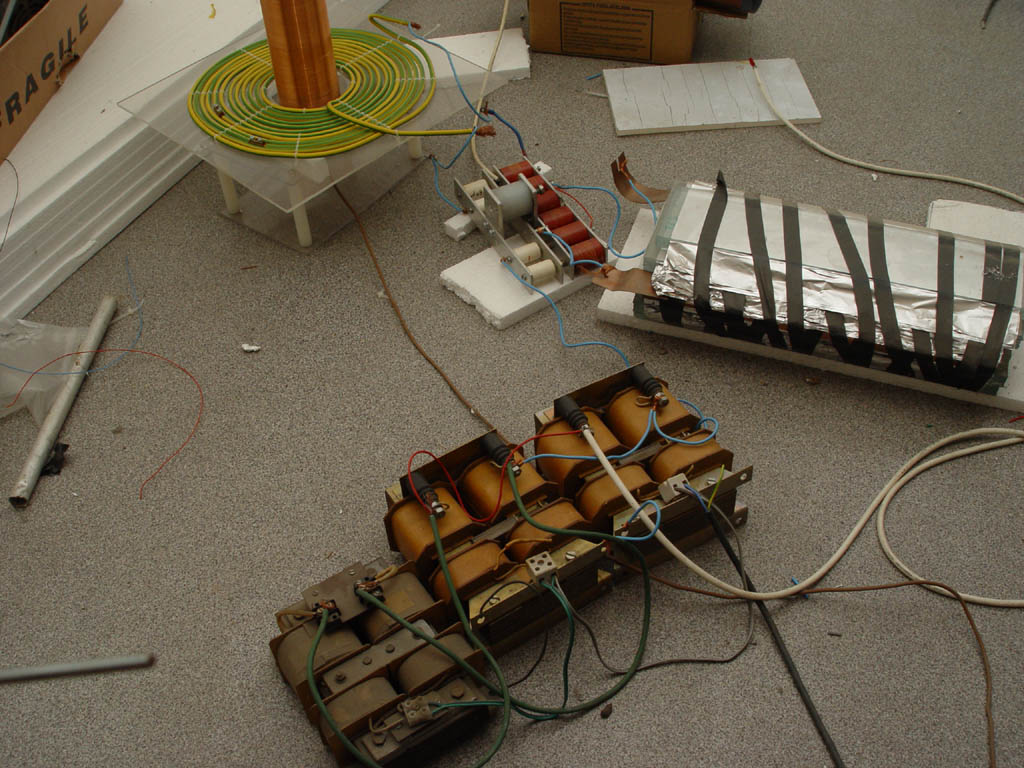

Now, how looks Tesla Coil and whole setup...
 |
 |

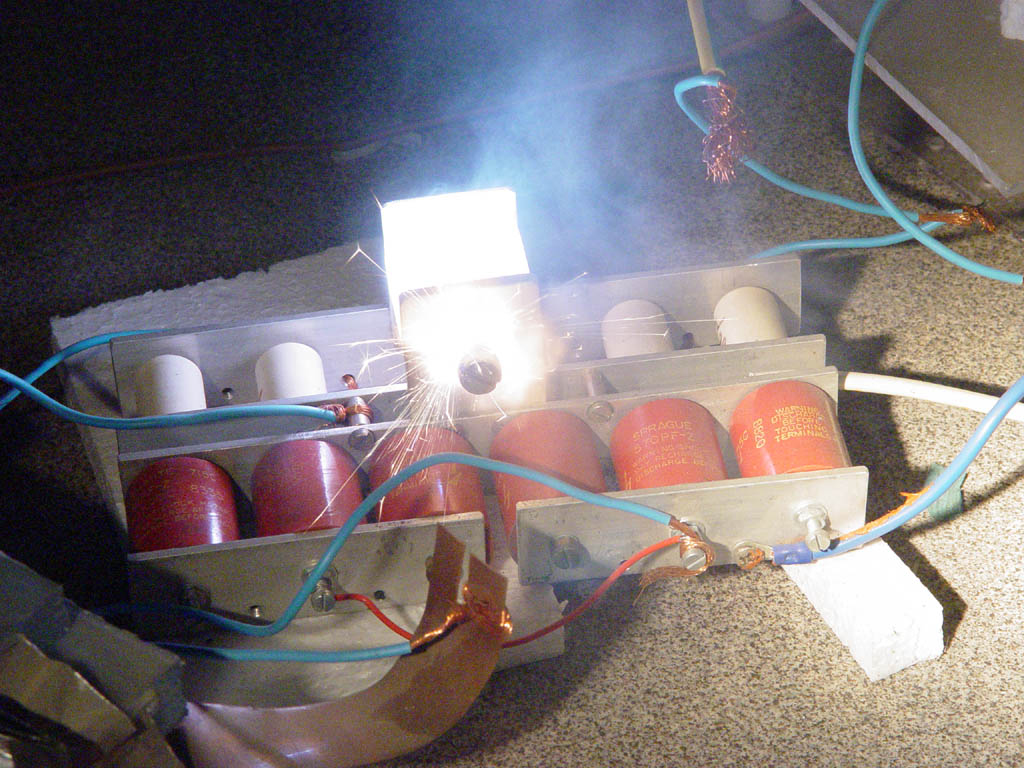

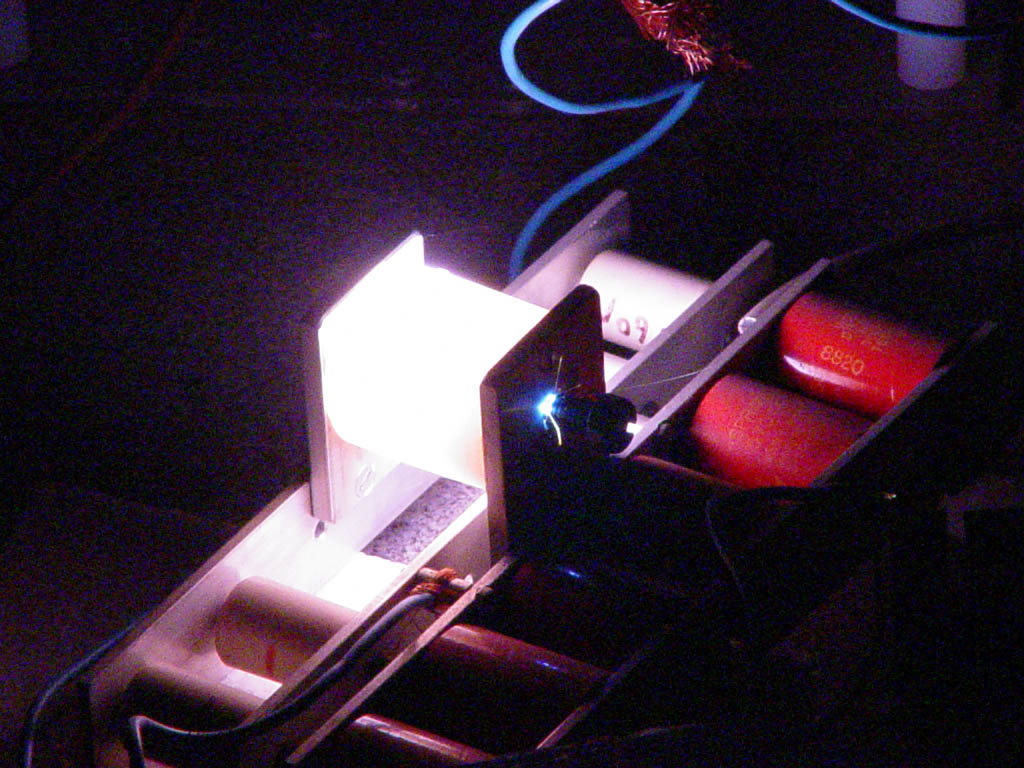

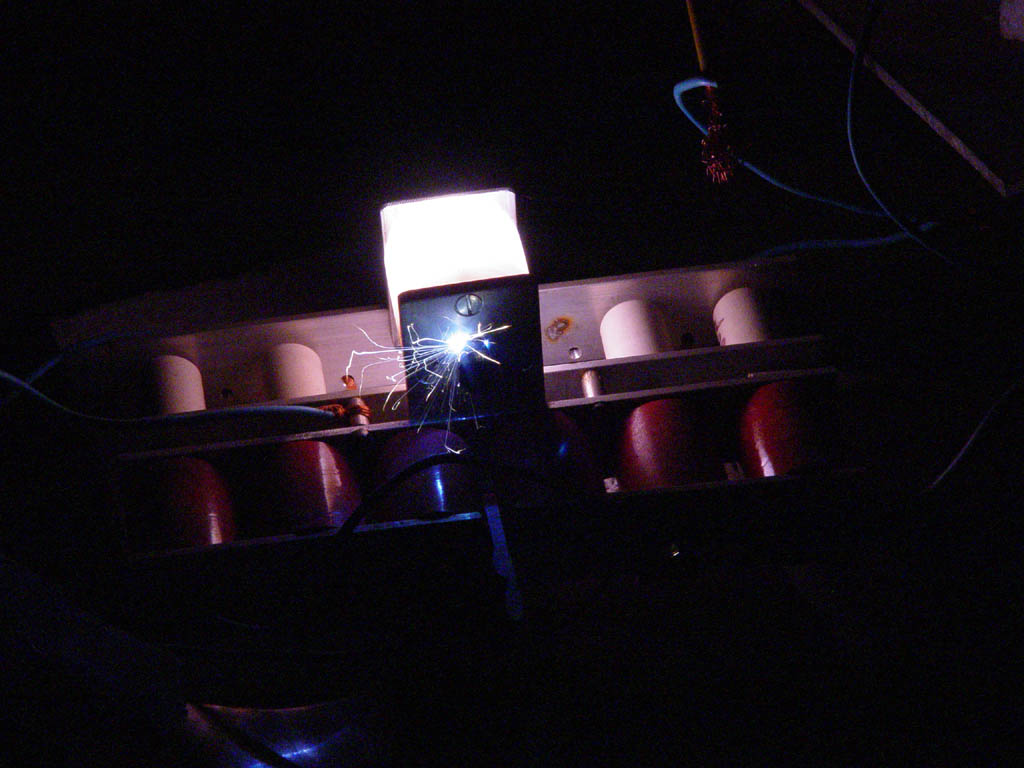

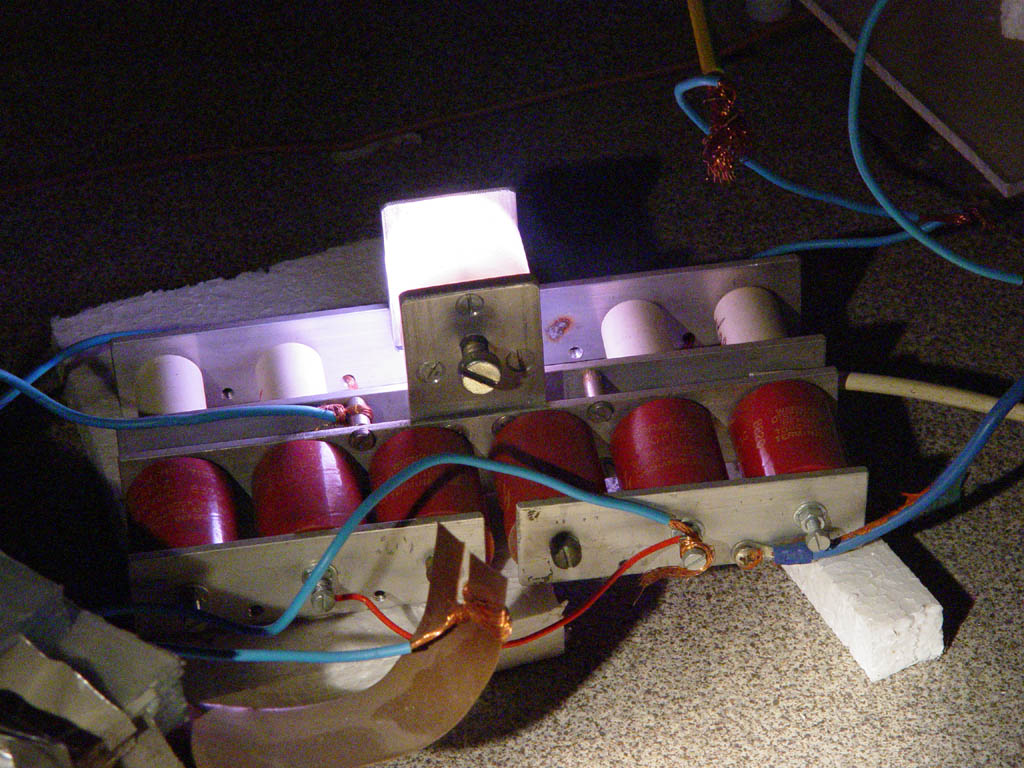

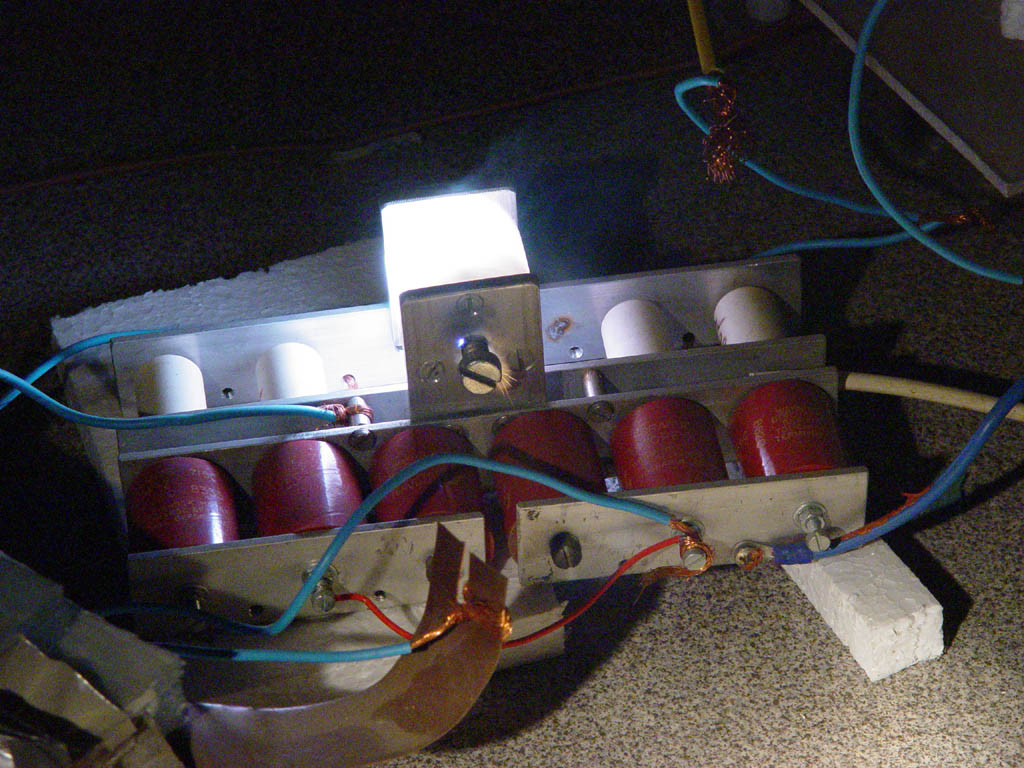

And finally, Spark Gap which was planned to use for another experiments,
and how I destroy it (I push too much power in SG and play with TC too long time)...
 |
 |
 |
 |
 |
 |

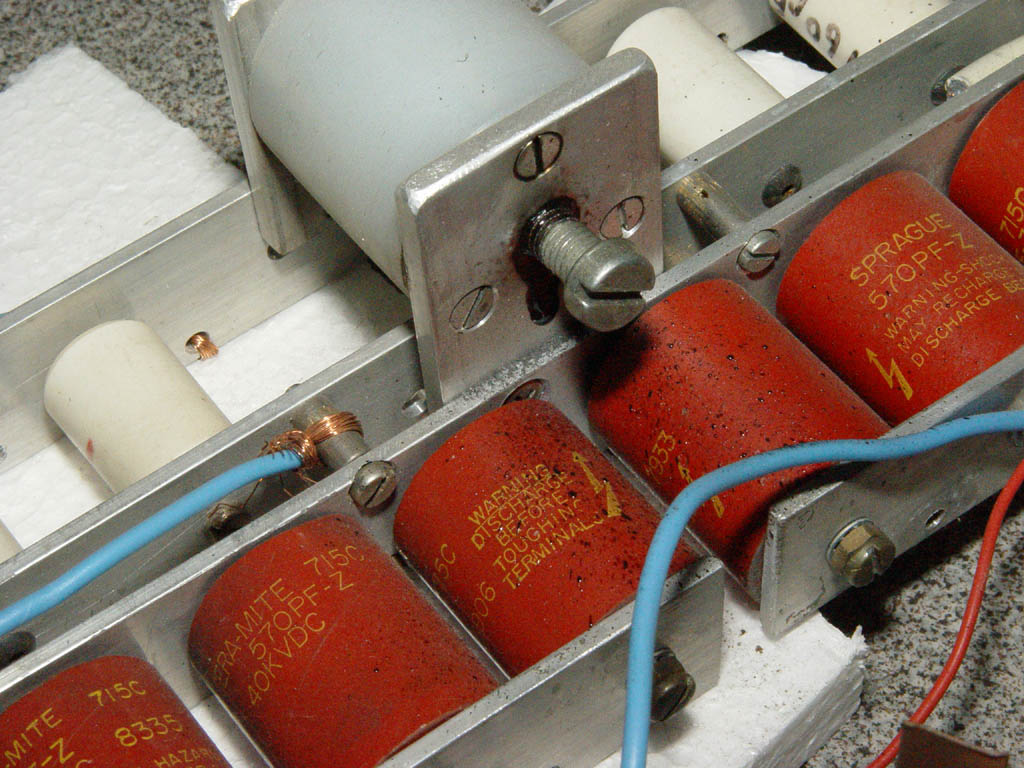

At last picture we can see black melted plastic which escape from SG.
Now, firstly I need make some pause, and take tools in my hands and build new SG...
